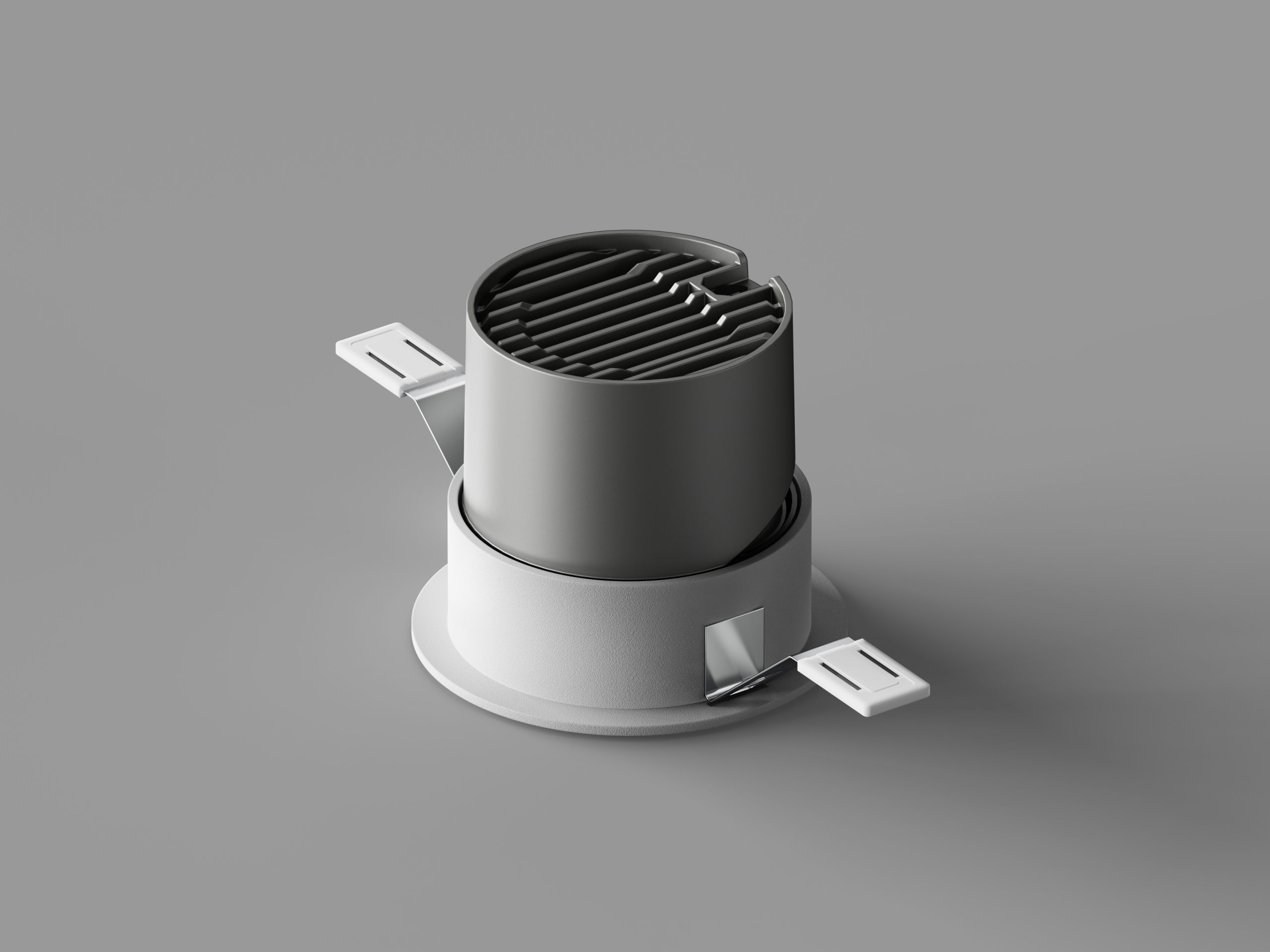

SO-CR-R-A-7-2436-CCT-75-80-MN

Technical Data

Model Reference

SO-CR-R-A-5-2436-CCT-75-80-MN

Power (Wattage)

Lumen Output

560 lm

Luminous Effficiency

80Lm/W

CRI

CRI >90

Colour Temperature(CCT)

2700 / 3000K / 4000K / 6000K

Finish

Black / White

IP rating

IP20

Dimension

83mm x 73

Ambient Working Temperature

-25° to +50°

Chip Type

COB

Beam Angle

24° / 36°

Cut out

Ø75

Control Option

on-off / Triac / 0-10V / Dali
