EDGE-L-F-510M-124-CCT-VPD-582-480

Technical Data

Model Reference

Lumen Output

768 lm >4000K

Power (Wattage)

9.6W/m

Input Voltage

12V/24V DC

CRI

CRI 90+

Luminous Effficiency

80 lm/W >4000K

Colour Temperature(CCT)

2700K / 3000K/4000K / 6500K

Finish

white

IP rating

IP20 / IP54

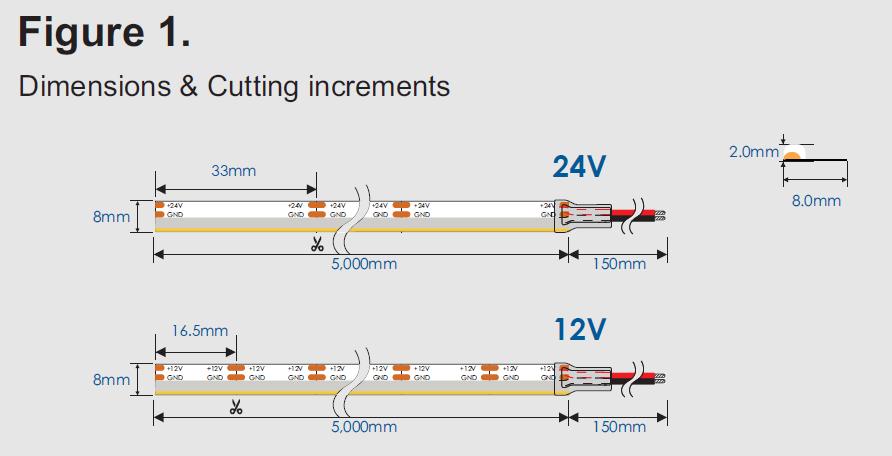

Dimension

L5000*W8*H2 mm

Ambient Working Temperature

-20 ~ +45 C°

Chip Type

COB

Optics

135

Control Option

0-10V / PWM / Dali
