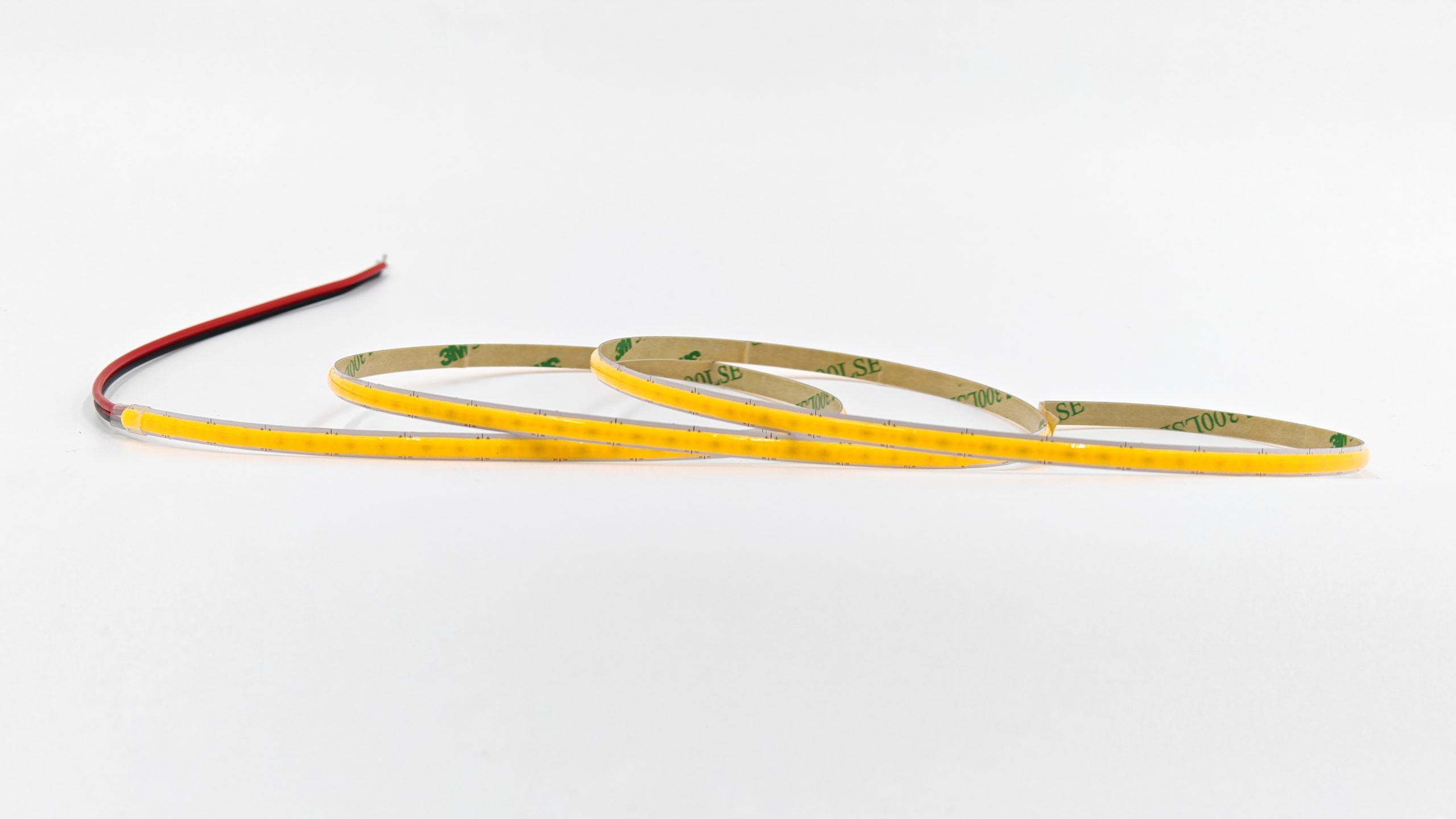

EDGE-L-F-510M-124-CCT-VPD-551-504

Technical Data

Model Reference

Lumen Output

570 lm >4000K

Power (Wattage)

6W/m

Input Voltage

12V/24V DC

CRI

CRI 90+

Luminous Effficiency

95 lm/W >4000K

Colour Temperature(CCT)

2700K/3000K/4000K/6000K

Finish

white

IP rating

IP20 / IP54 / IP65 / IP67 / IP68

Dimension

L5000*W5*H1.6 mm

Ambient Working Temperature

-20 ~ +45 C°

Chip Type

COB

Optics

135

Control Option

0-10V / PWM / Dali
