EDGE-L-F-152M-124-RGBW-PWM-5121-896

Technical Data

Model Reference

LUX8-EDGE-L-F-152M-124-RGBW-PWM-5121-896

Lumen Output

R: 109 lm

Power (Wattage)

16W/m

Input Voltage

12V/24V DC

CRI

Luminous Effficiency

30 lm/W RGBW

Colour Temperature(CCT)

RGBW

Finish

white

IP rating

IP20 / IP54 / IP65 / IP67 / IP68

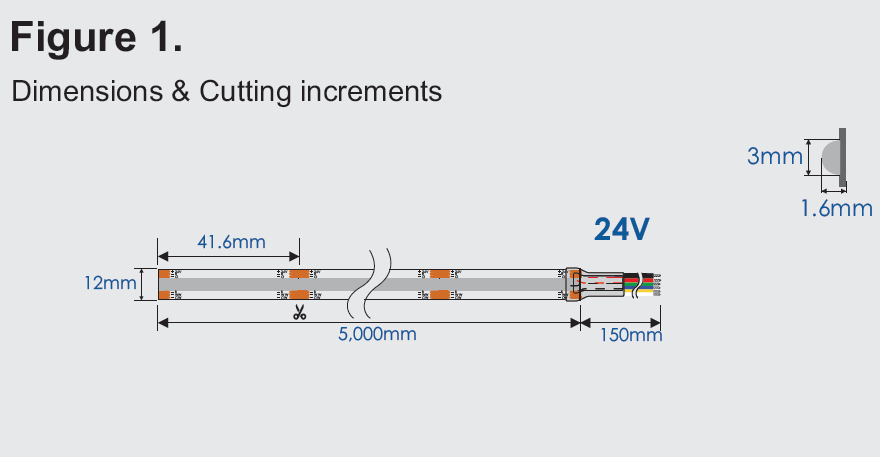

Dimension

L5000*W12*H1.6 mm

Ambient Working Temperature

-20 ~ +45 C°

Chip Type

COB

Optics

135

Control Option

PWM
