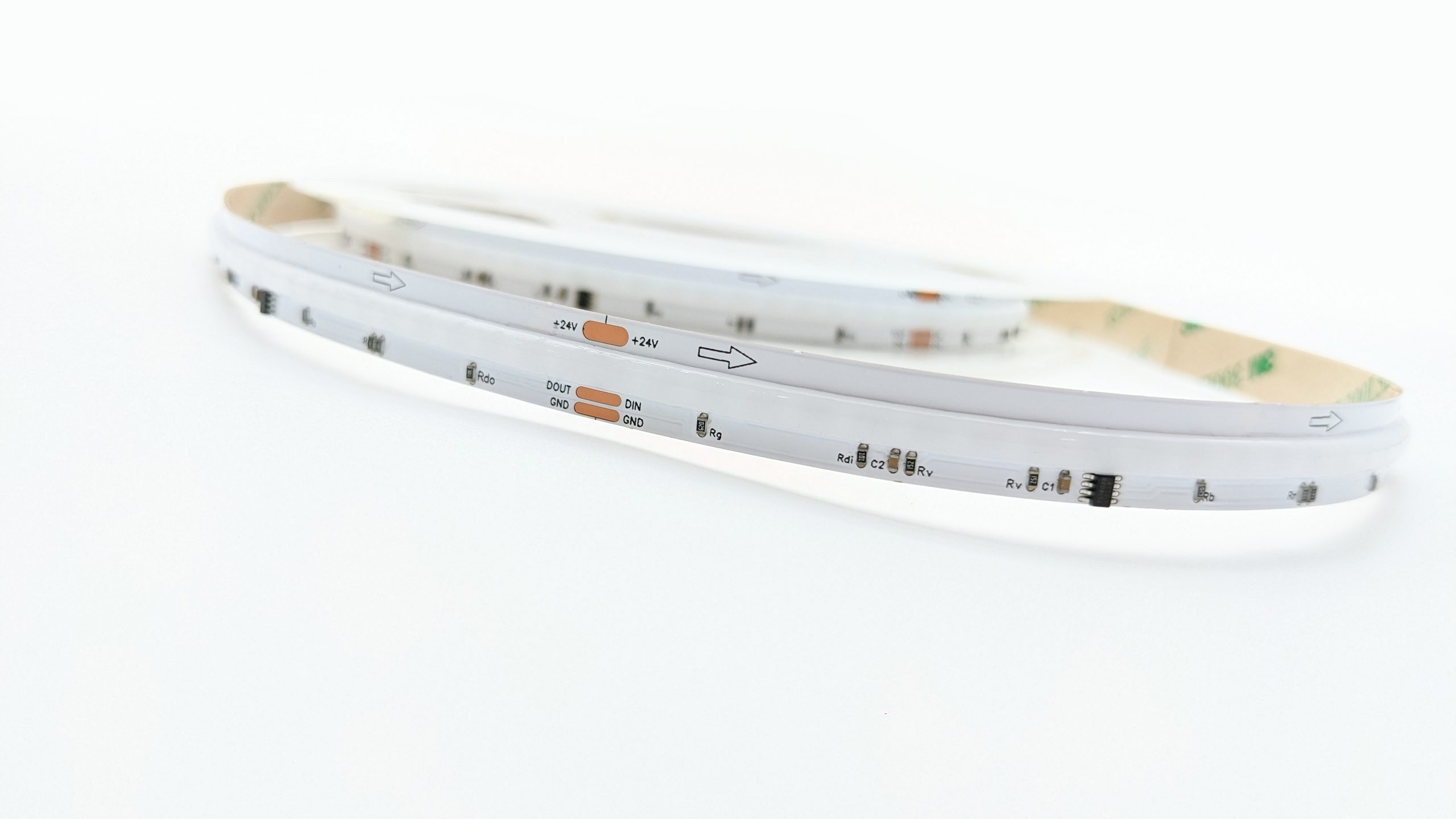

EDGE-L-F-115M-124-RGB-SPI-5101-630

Technical Data

Model Reference

Lumen Output

R: 75 lm

Power (Wattage)

11W/m

Input Voltage

12V/24V DC

CRI

Luminous Effficiency

40 lm/W

Colour Temperature(CCT)

RGB

Finish

white

IP rating

IP20 / IP54 / IP65 / IP67 / IP68

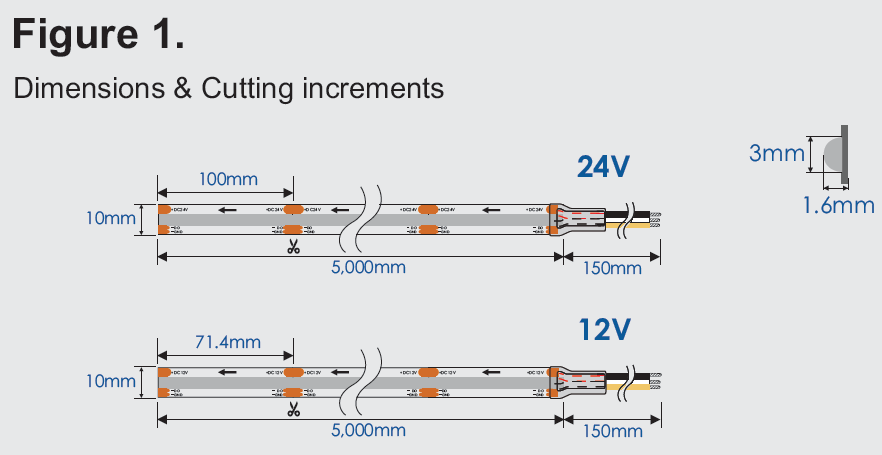

Dimension

L5000*W10*H1.6 mm

Ambient Working Temperature

-20 ~ +45 C°

Chip Type

COB

Optics

135

Control Option

SPI
