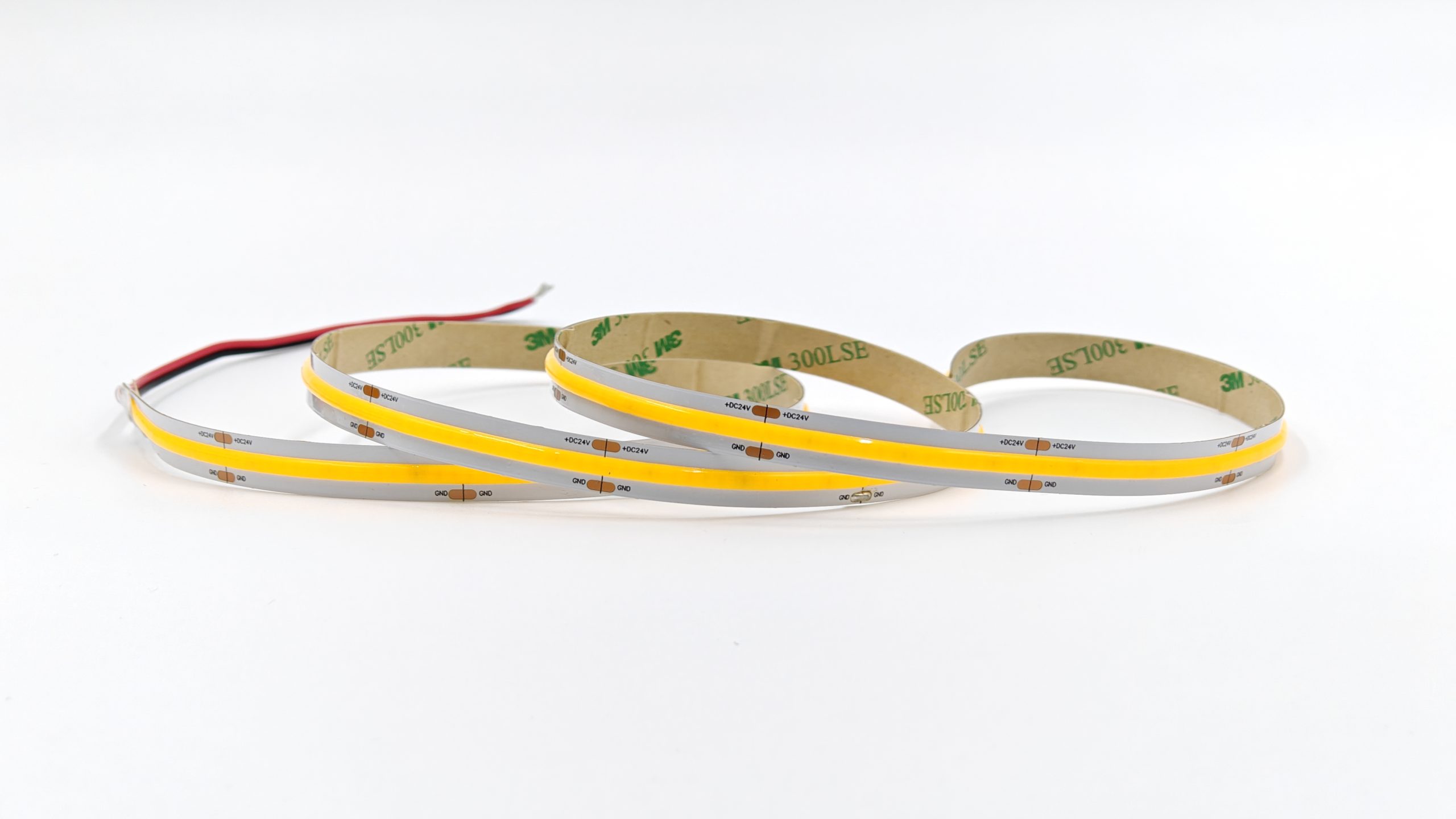

EDGE-L-F-115M-124-2346-VPD-5101-528

Technical Data

Model Reference

Lumen Output

1368 lm >4000K

Power (Wattage)

14.4W/m

Input Voltage

12V/24V DC

CRI

CRI 90+

Luminous Effficiency

95 lm/W >4000K

Colour Temperature(CCT)

2700K / 3000K

Finish

white

IP rating

IP20 / IP54 / IP65 / IP67 / IP68

Dimension

L5000*W10*H1.6 mm

Ambient Working Temperature

-20 ~ +45 C°

Chip Type

COB

Optics

135

Control Option

0-10V / PWM / Dali
